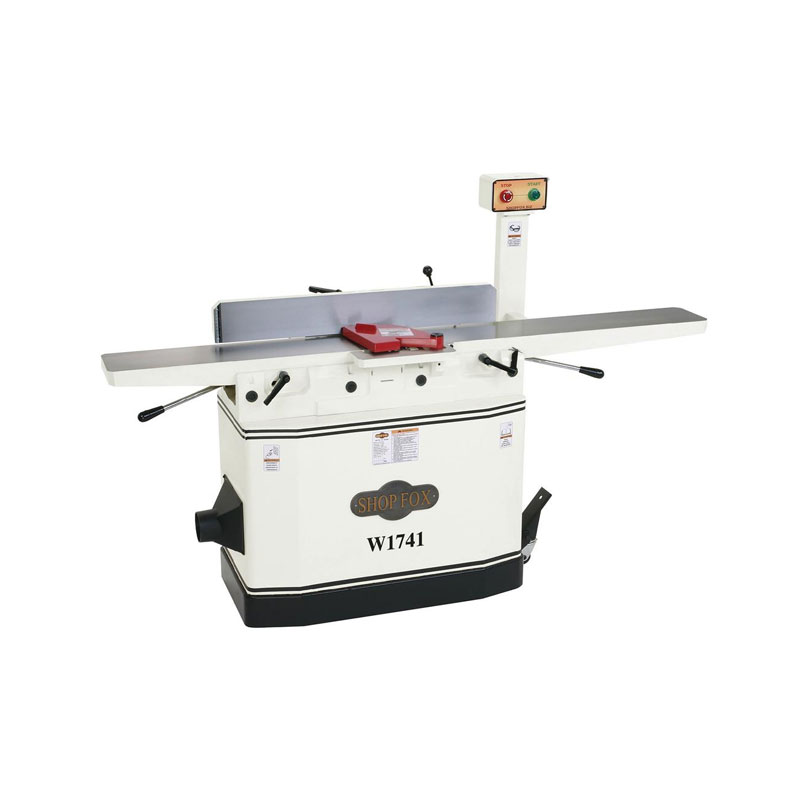

Shop Fox SFX/W1741 Jointer 8″ With Adjustable Beds
The Shop Fox has a 3 HP motor and a 4 knife cutter head and added a precision parallelogram table adjustment mechanism, extra long infeed table, large cast-iron center-mounted fence, pedestal mounted switch, and a built-in locking mobile base.
- Extra-long infeed table
- Pedestal mounted controls
- Heavy-duty cast-iron center-mounted fence with angle gauge
- Precision-ground cast-iron tables
- Quick-action table adjustment levers
- Built-in mobile base
- Internal magnetic switch with thermal overload protection
- Motor: 2 HP, 240V, single-phase, 15A
- Maximum width of cut: 8″
- Maximum depth of cut: 1/8″
- Maximum rabbeting depth: 5/8″
- Cutterhead Diameter: 3-3/16″
- Cutterhead type: 4-knife
- Knife size and type: 8″ x 3/4″ x 1/8″, HSS, single-sided
- Cutterhead speed: 4,800 RPM
- Table size: 8″ x 76-3/8″
- Fence size: 5″ x 36″
- Minimum stock length: 10″
- Minimum stock thickness: 1/2″
- Dust port size: 4″
- Footprint: 16-1/2″ x 44-1/2″
- Overall dimensions: 76-1/2″ W x 23-1/2″ D x 33″ H
